◆護膚品顯著特點 Product features(請往左邊網頁瀏覽大量案例(li)庫婚紗照供參看)

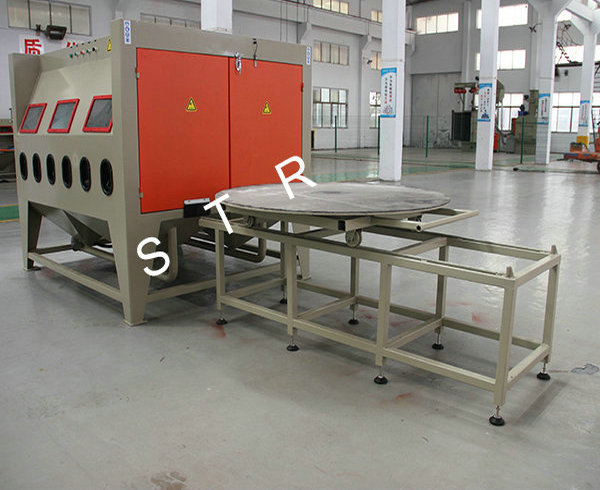

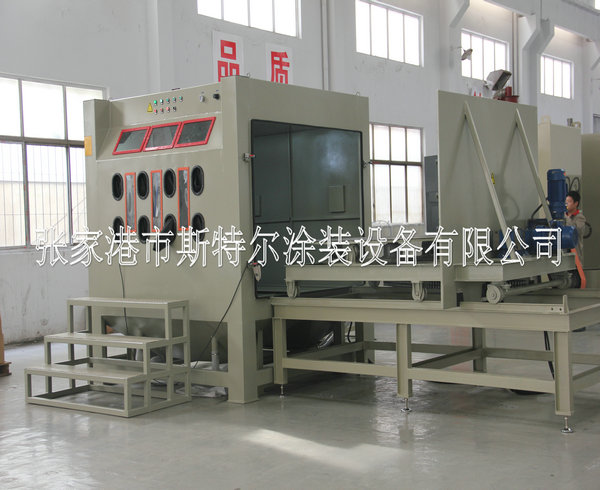

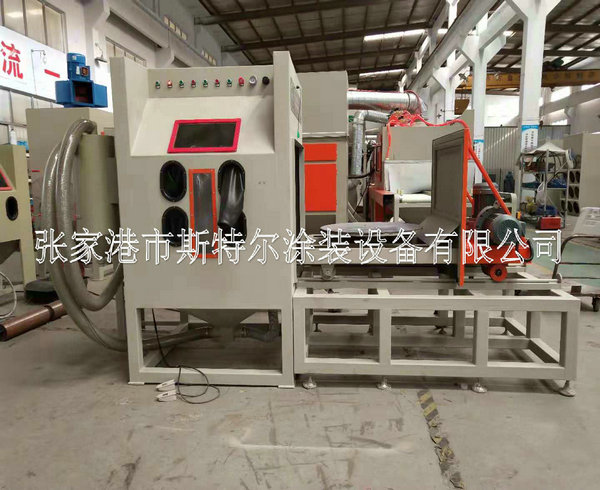

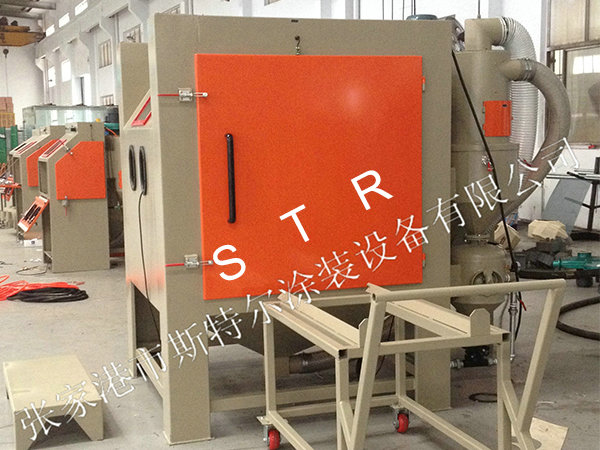

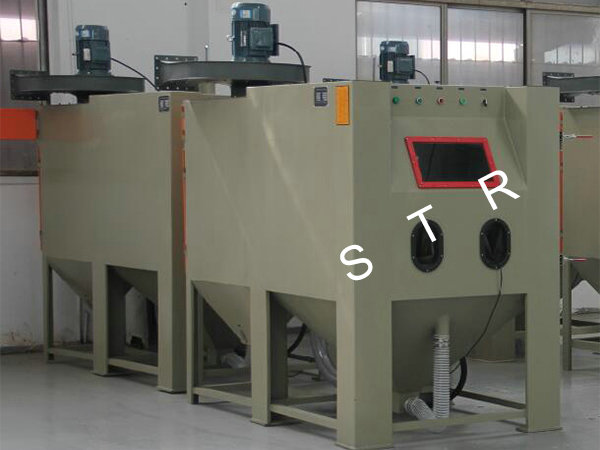

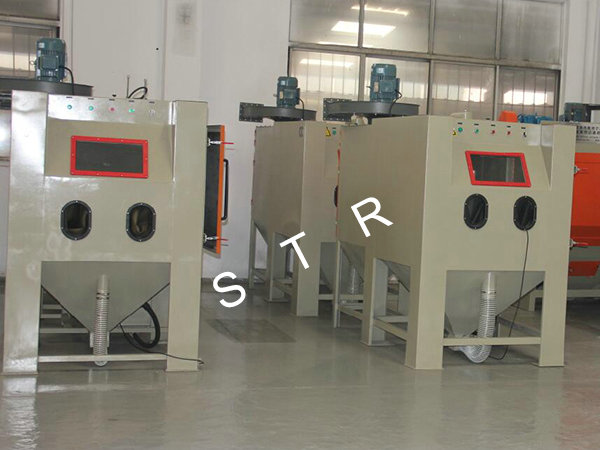

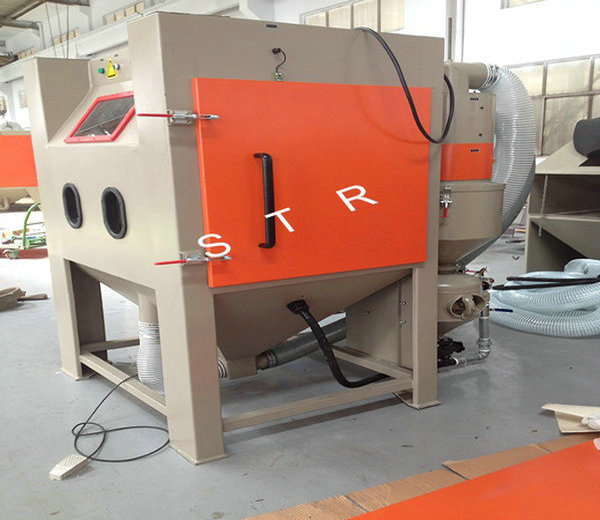

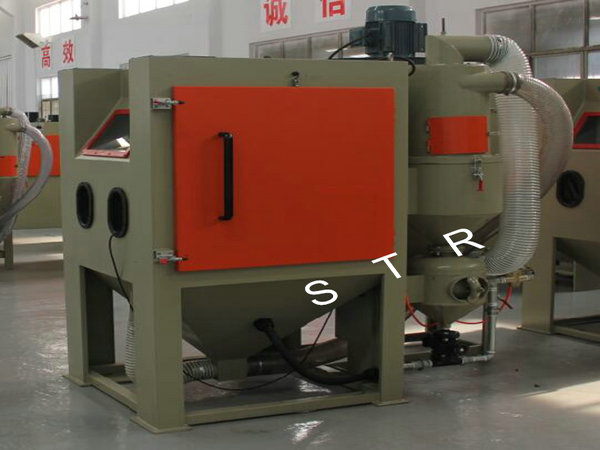

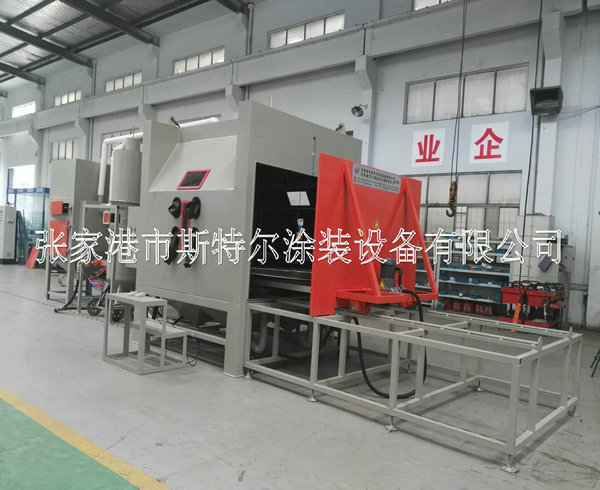

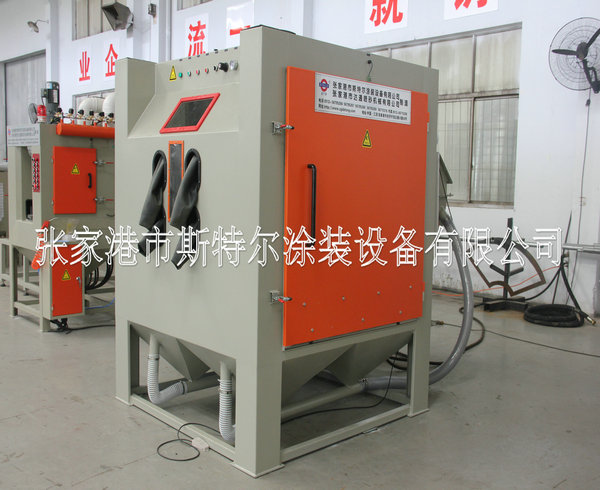

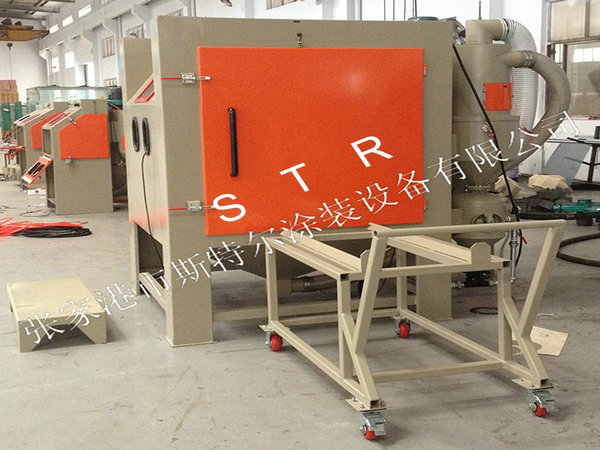

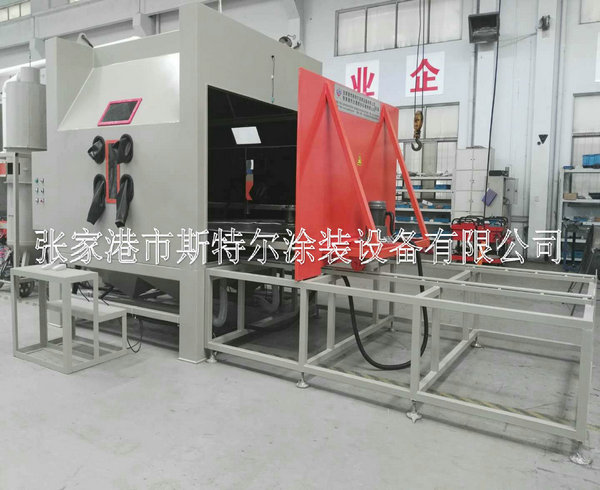

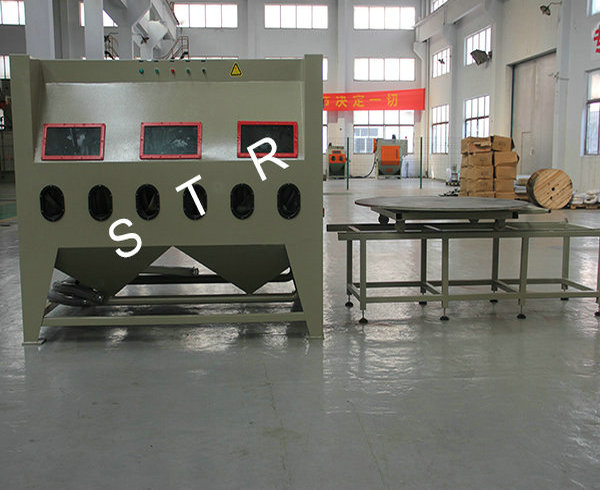

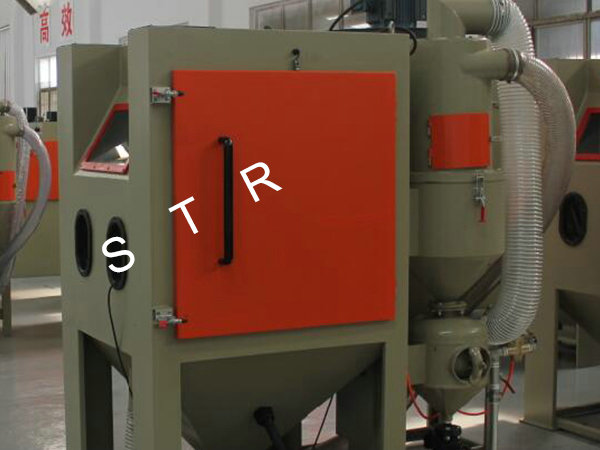

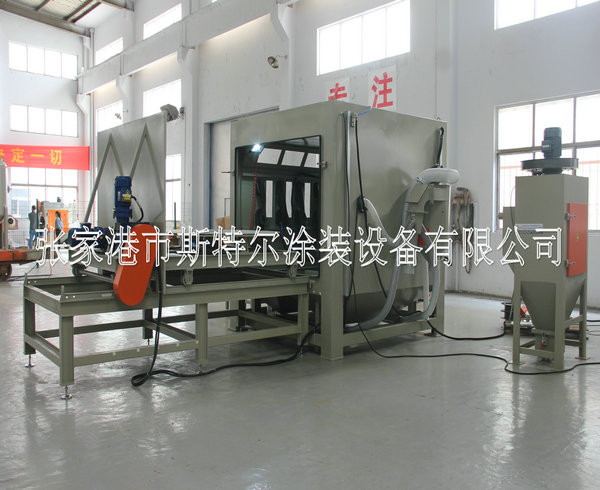

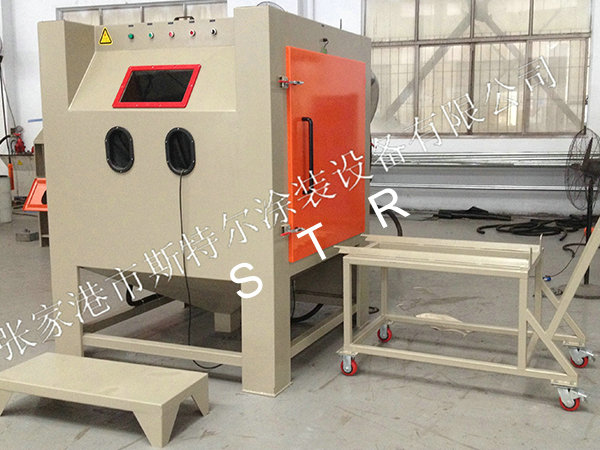

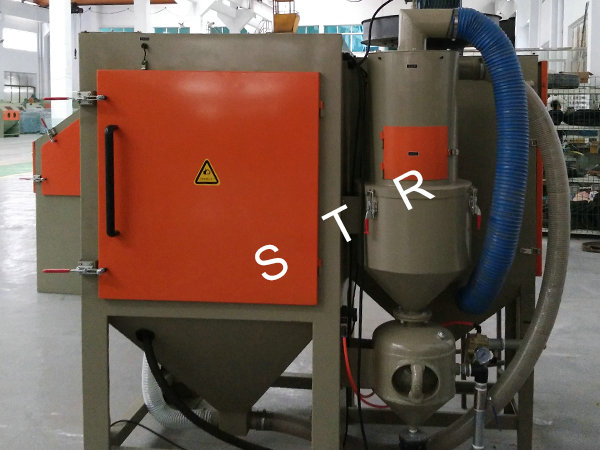

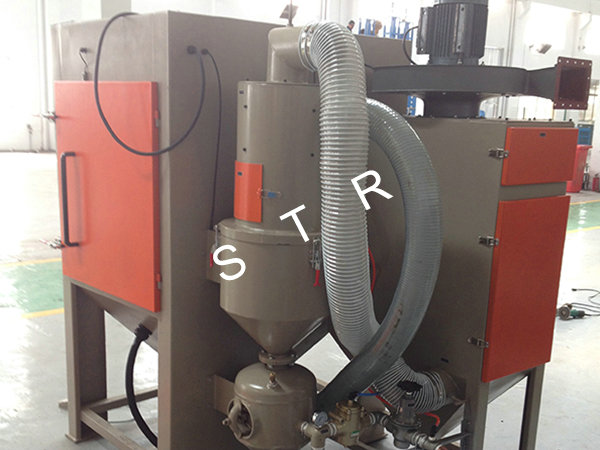

噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。
Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.
◆常用超范圍 Applicable scope
智(zhi)能(neng)家具五金類(lei),ABS塑料材質(zhi),有機板(ban),磨具。特重型(xing)軸類(lei)零(ling)件(jian)表面(mian)、結構設計件(jian)、樹脂膠(jiao)等(deng)軸類(lei)零(ling)件(jian)表面(mian)或(huo)技藝品噴砂。
Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting
◆最主要的水平叁數 Main technical parameters僅供參考資料具體的與業務員連系
|
刷卡機規格 Model |
STR-9070 |
STR-9080 |
STR-1010 |
STR-1212 |
|
工做(zuo)艙長(chang)度(du) Internal size(mm) |
900×700×790 |
900×800×700 |
1000×1000×670 |
1180×1180×980 |
|
設備規格 Complete machine size(mm) |
900×700×1780 |
950×850×1720 |
1000×1000×2100 |
1200×1200×2580 |
|
除(chu)塵設備箱長寬比 Dedust box sizes(mm) |
600×600×1680 |
600×600×1680 |
600×600×1680 |
800×800×1780 |
|
電壓 Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
系統光照燈 Machine floodlight |
220V 20W 節能公司(si)燈 |
220V 20W 能源管理燈(deng) |
220V 20W 節能(neng)公司燈(deng) |
220V 20W 低碳燈 |
|
拆分器伺服電(dian)機 Separator motor |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55 |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55-3KW |
|
分離出來器排風量 Separator air volume |
8.5m3/min |
8.5m3/min |
8.5m3/min |
8.5m3/min |
|
縮小(xiao)氣流源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
服務器總重量 Weight |
380kg |
380kg |
400kg |
380kg |
